新品發布
New Product Release

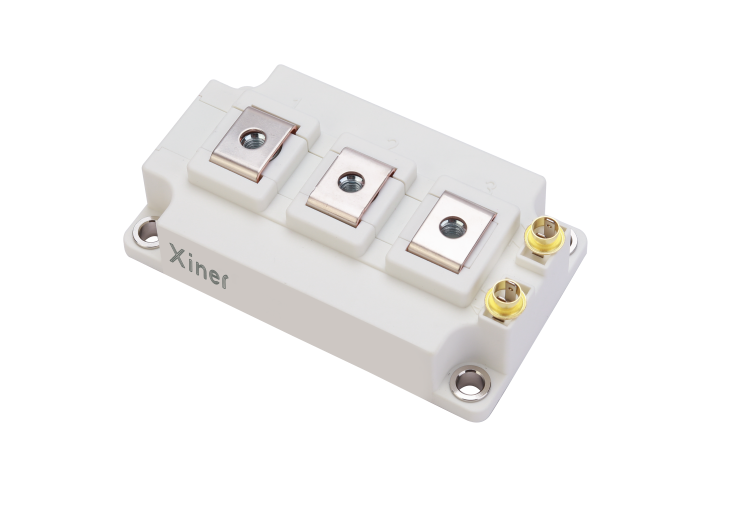

Xiner Semiconductor Technology has introduced a new 1200V800A C2 module, utilizing self-developed IGBT and emitter control technology FRD based on the MPT process platform, with a package compatible with 62mm.
This product boasts ultra-low saturation voltage drop, extremely low switching loss, and an integrated full current positive temperature coefficient continuous current diode to enable multi-parallel use. It is primarily utilized in photovoltaic, energy storage, motor controller and other related fields.
芯能半導體新推出一款1200V800A C2模塊，該模塊采用自主研發的基于MPT工藝平臺的IGBT和發射極控制技術的FRD，封裝兼容62mm。
此產品具有超低的飽和壓降、超低開關損耗的特點，內置全電流正溫度系數續流二極管，利于多并聯使用，主要應用在光伏、儲能、電機控制器等領域。
Related products/相關產品：
XNG800BL12C2E-J11 / XNG800BL12C2E-J11
1200V C2 Half-bridge power module /1200V C2半橋功率模塊

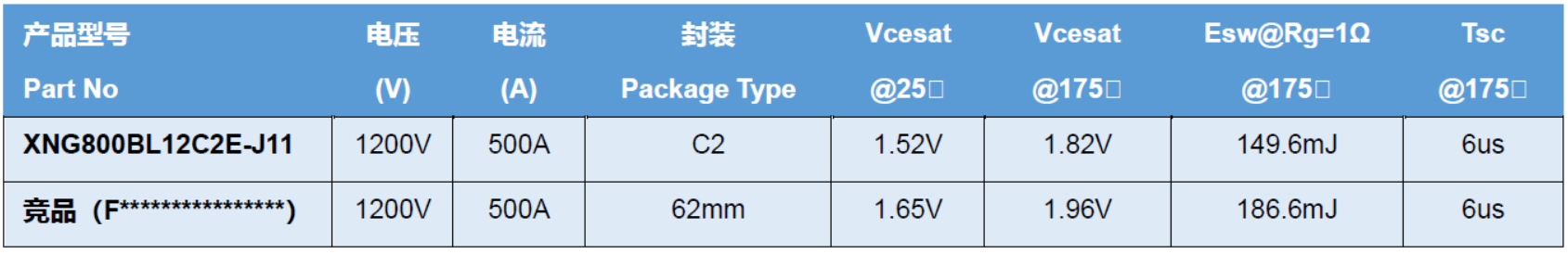

Product Characteristics/產品特性
Product Features/產品特點
1、Self-built automated production line/ 自建的自動化生產專線
2、C2 package (compatible with62mm) /C2封裝（兼容62mm）
3、1200V IGBT(MPT process platform) /1200V IGBT（MPT工藝平臺）
4、1200V positive temperature coefficient FRD, conducive to multiple parallel use / 1200V正溫度系數FRD，利于多并聯使用
5、Optimized for low inductance design / 針對低電感設計進行了優化
6、TVjop=175°C
Application Value/應用價值
1、Lower voltage overshoot/更低的電壓過沖
2、Low on-off loss/低導通損耗
3、Low switching loss/低開關損耗
4、Easy to parallel, the current can be extended/ 易于并聯，可擴展電流
5、Reduce system costs/降低系統成本
Application Area/應用領域
Topological Structure/拓撲結構
Test Waveform/測試波形

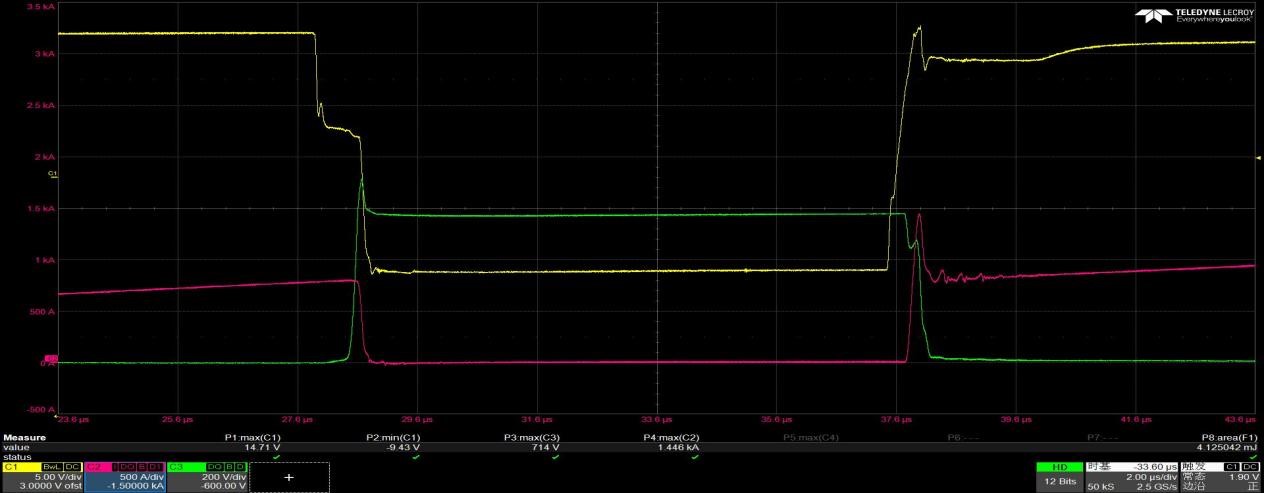

1x current switch waveform @175℃
1倍電流開關波形@175℃

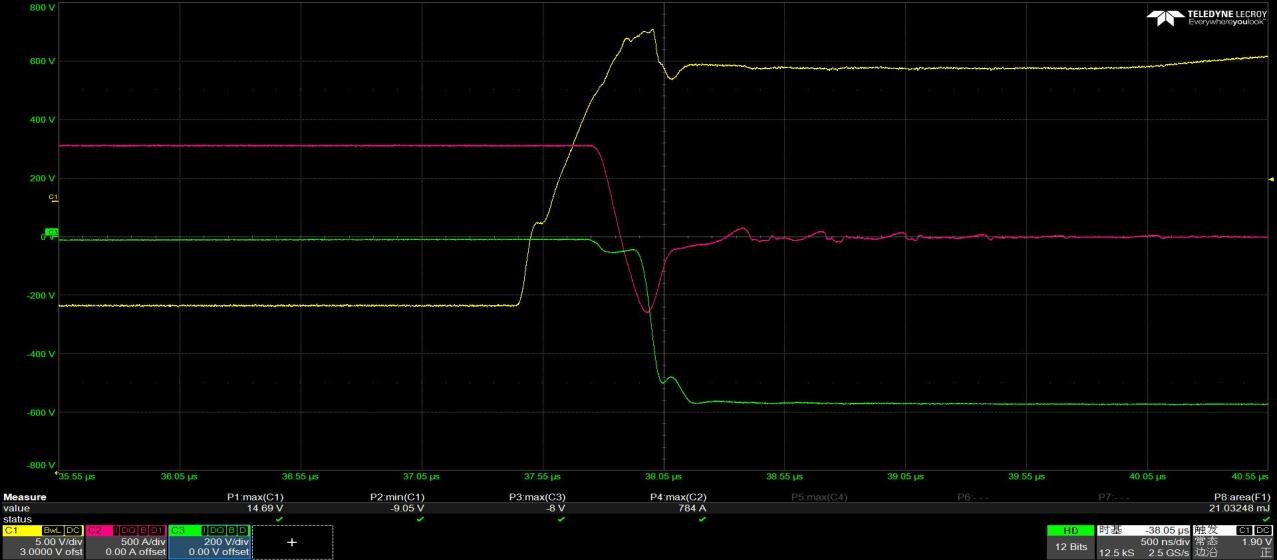

1x current reverse recovery waveform @175℃
1倍電流反向恢復波形@175℃

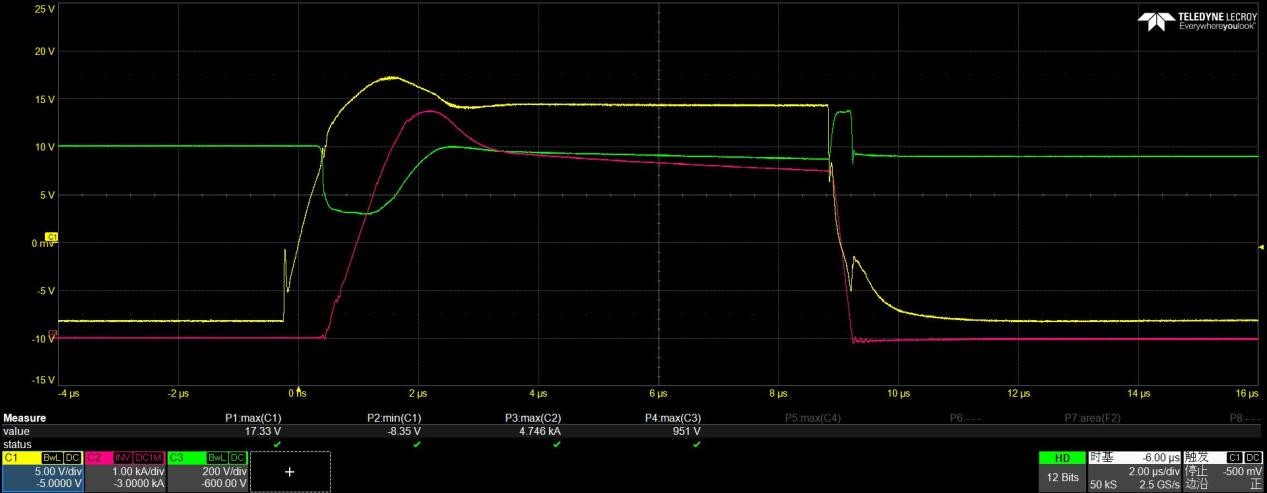

Short-circuit waveform @175℃
短路波形@175℃

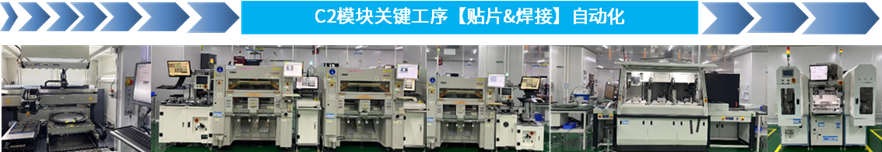

Automatic packaging/自動化封裝
Xiner Semiconductor Technology has a dedicated line for the production of C2 power modules, and the full process and full process production operations are equipped with advanced process automation loading and unloading system: to achieve efficient production and consistent product quality.
芯能半導體有一條專門生產C2的模塊的專線，全制程、全工序生產作業配備有先進的工藝自動化上下料系統：以實現高效的生產和一致的產品質量。
※ ：For specific product information, please consult our sales personnel or request product specifications（service@invsemi.com）.
產品具體信息可向我司銷售人員咨詢或索取產品規格（service@invsemi.com）。
